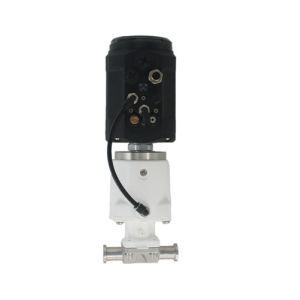

Electro Pneumatic Intelligent Valve Positioner

Name: Electro Pneumatic Intelligent Valve Positioner
Brand: POWERFLOW
Price: 1 USD

Brand Name : POWERFLOW

Model Number : 1500

Certification : ISO9001. CE

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Packaging Details : CTN, 30*18*17CM

Ambient Temp. : 0-70°

Supply Pressure : 3~7 bar, specific values depending on the actuator

Air Flow Rate : 17 L/min(Sup=0.6Mpa); 58 L/min(Sup=0.6Mpa ,only single-acting)

Stroke Range : Linear for 5-50mm, Rotary for 90°

Electrical connection : M12 2-pins B-coded（cable Φ 4-6mm); M12 4-pins D-coded（cable Φ 4-6mm)

Thread Type : G1/4、M16*1、M22*1.5、M26*1.5

Contact Now

1500 Series Thread Mounted Intelligent Electro-pneumatic Valve positioner for Diaphragn Valves

1. Product description

1500 series smart valve positioner can be mounted on the pneumatic actuator as a control device for valve opening. According to a 4 to 20mA electric input signal from a higher-level control system or a control device to control air intake and exhaust of the pneumatic actuators to control the valve position.

2. Technical Data

Material	PC,PA6-GF30,SI
Power supply	24V DC ±10%
Set-point signal	4 - 20 mA
Input resistance for set-point signal	120Ω
Ambient temperature	0 - 70°
Pneumatic connection	Plug-in hose connector G1/4 (internal Φ6mm)
Electrical connection	M12 3-pins B-code (cable Φ 4-6mm); M12 4-pins D-code (cable Φ4-6mm)
Supply pressure	3-7 bar, specific values depending on the actuator
Air flow rate	17 L/min (Sup=0.6MPa); 58L/min (Sup=0.6MPa)
Stroke control range	Linear 5-50mm; Rotary 90°
Installation	As required, preferably with actuator in upright position, screw
Protection class	IP66
Power consumption	＜5W

3. Product type selection

Electro Pneumatic Intelligent Valve Positioner

4. Dimensions

Electro Pneumatic Intelligent Valve Positioner

5. Additional software functions

4 - 20mA signal input
Optional 4 - 20mA signal output
Autotune
Valve position manual adjustment
Sealing function
Dead band setting
4 - 20mA input signal error detection
Factory setting

6. Schematic diagram

Electro Pneumatic Intelligent Valve Positioner
